Type 309
Chlorine Valves
Phönix Armaturen Werke
Description

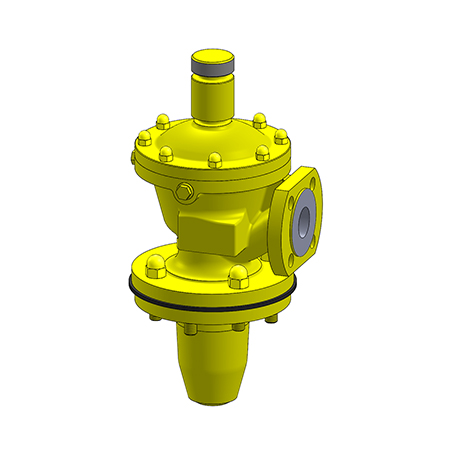

Tanker valve combination of a pneumatically operated quick closing valve with bellows and a spring-loaded ball check valve
PN
25
DN
40
Class
150
NPS
1½
Temperature Rating
-50°C to 70°C
Body Forms
- Angle Pattern Body
Basic Body Material
- Carbon Steel
- Low Temperature
- Stainless Steel
- Hastelloy
Connections
- Flanged Ends
- other requirements on request
Operation
- Pneumatic Diaphragm Actuator
- Manual Override
Applications
Acc. to DIN 26028, CEFIC UN 14, GGV Annex XI with ref. for railway tankers, ISO-Container (309.50) and trucks top loading for extremely dangerous media, e.g. chlorine, hydrofluoridric
Approval
- Prototype 06D2
- BAM
- Euro Chlor 96/01, 96/02, 96/03, 96/07
- TPED 2010/35
- Prototype nach DN EN 14432
- Euro Chlor approval 20/03
Brand
Phönix Armaturen Werke
Catalogue Sheet
execution according to DIN
execution according to ASME
