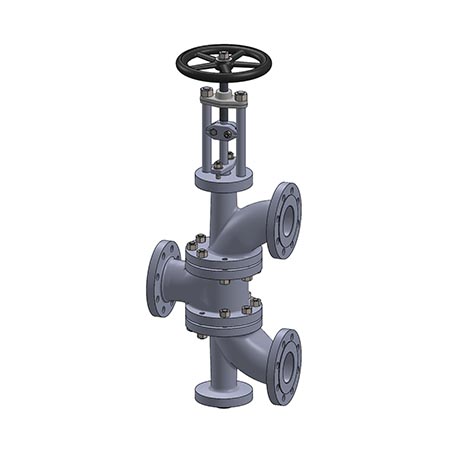

Type 320B

Change-over Valves

Type 320B

Phönix Armaturen Werke

Description
Change-over-Valve with stuffing box seal, low pressure loss, ζ < 1
PN
25 - 100
DN
15 - 500
Class
150 - 600
NPS
1/2 - 20
Temperature Rating
-196°C to 650°C
Body Forms
  • 3-way
Basic Body Material
  • Carbon Steel
    • High and Low Temperature
  • Stainless Steel
    • High Temperature
    • High Chromium
  • Hastelloy
  • Inconel
  • Pure Nickel
  • Titanium
  • other special alloys on request
Connections
  • Flanged Ends
  • Butt Welding Ends
  • Socket Welding Ends
  • Threaded Ends
  • other requirements on request
Operation
  • Handwheel
  • Chainwheel
  • Gear Operator
  • Pneumatic Piston Actuator
  • Pneumatic Diaphragm Actuator
  • Electric Actuator
Applications
Switch-over valve or in combination with safety valves for toxic, aggressive and inflammable gases and liquids, boiler and cooling water, saturated steam etc., under consideration of the material resistance
Approval
Brand
Phönix Armaturen Werke
Catalogue Sheet
execution according to DIN
