Type 350 EC4/5
Chlorine Valves
Phönix Armaturen Werke
Description

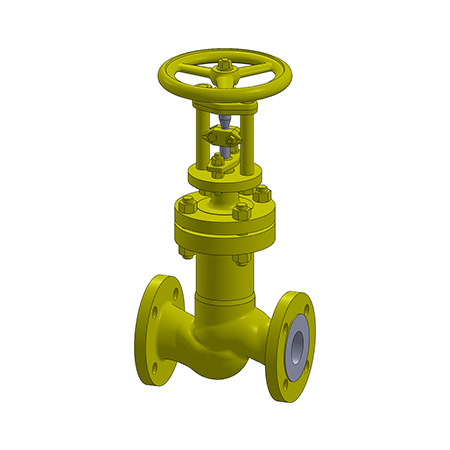

Globe valve for chlorine service with encapsulated superlong bellows in the body and one piece bonnet
PN
40
DN
15
- 350
Class
300
NPS
1/2
- 14
Temperature Rating
-40°C to 120°C
Body Forms
- Straight Pattern Body
Basic Body Material
- Carbon Steel
- Low Temperature
- Stainless Steel
- Hastelloy
Connections
- Flanged Ends
- other requirements on request
Operation
- Handwheel
- Lever
- Chainwheel
- Gear Operator
- Pneumatic Piston Actuator
- Pneumatic Diaphragm Actuator
- Electric Actuator
Applications
For liquid chlorine service and similar dangerous, toxic, aggressive and corrosive media (for example phosgene)
Approval
- Euro Chlor approval 20/01
- DGM 29823805.5
- ISO 15848-1 AH
Brand
Phönix Armaturen Werke
