Type 350 EC8/9
Chlorine Valves
Phönix Armaturen Werke
Description

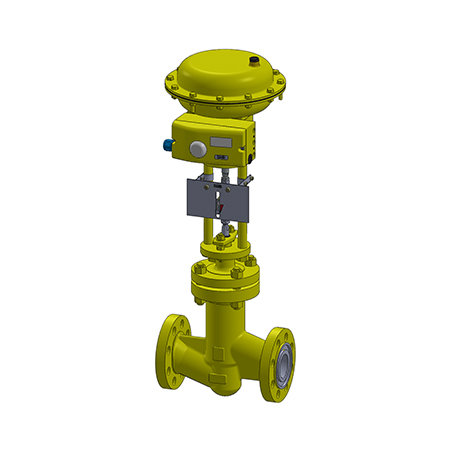

Control valve for chlorine service with encapsulated superlong bellows in the body and bonnet
PN
40
DN
15
- 350
Class
300
NPS
1/2
- 14
Temperature Rating
-40°C to 120°C
Body Forms
- Straight Pattern Body
Basic Body Material
- Carbon Steel
- Low Temperature
- Stainless Steel
- Hastelloy
Connections
- Flanged Ends
- other requirements on request
Operation
- Pneumatic Piston Actuator
- Pneumatic Diaphragm Actuator
Applications
For liquid chlorine service and similar dangerous, toxic, aggressive and corrosive media (for example phosgene)
Approval
- Euro Chlor approval 20/02
- SIL
Brand
Phönix Armaturen Werke
Catalogue Sheet
execution according to DIN
