Type 385 NH3

Globe Valves

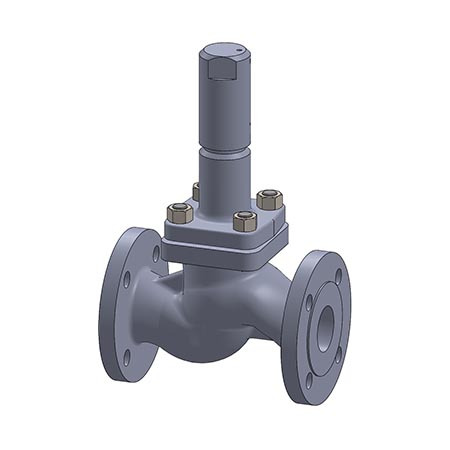

Type 385 NH3

Phönix Armaturen Werke

Description
Shut-off valves with bypassed bellows with safety stuffing box and internal stem
PN
10 - 40
DN
15 - 400
Class
150 - 300
NPS
1/2 - 16
Temperature Rating
-196°C to 450°C
Body Forms
  • Straight Pattern Body
  • Y-Pattern Body
  • Angle Pattern Body
Basic Body Material
  • Carbon Steel
    • Low Temperature
  • Stainless Steel
  • Hastelloy
Connections
  • Flanged Ends
  • Butt Welding Ends
  • Socket Welding Ends
  • Threaded Ends
  • other requirements on request
Operation
  • Handwheel
  • Lever
  • Chainwheel
  • Gear Operator
  • Pneumatic Piston Actuator
  • Pneumatic Diaphragm Actuator
  • Electric Actuator
Applications
Acc. to TA-Luft (German “Clean Air Act”), especially for media which are dangerous for environment and cold service media. Operation components protected against icing.
Approval
Brand
Phönix Armaturen Werke
Catalogue Sheet
execution according to DIN
