Type 390

Globe Valves

Type 390

Phönix Armaturen Werke

Description

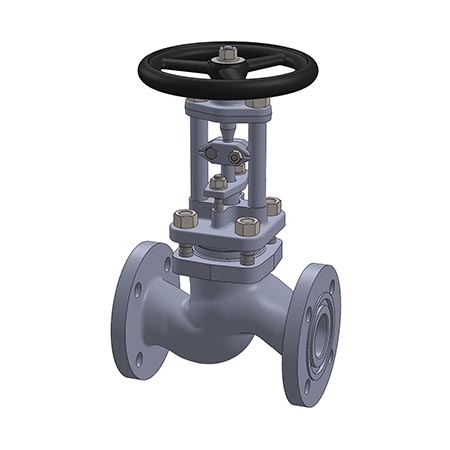

Globe valve with long flushed bellows and emergency gland
PN
10 - 100
DN
15 - 150
Class
150 - 300
NPS
1/2 - 6
Temperature Rating
-196°C to 450°C
Body Forms
  • Straight Pattern Body
  • Y-Pattern Body
  • Angle Pattern Body
Basic Body Material
  • Carbon Steel
    • High and Low Temperature
  • Stainless Steel
    • High Temperature
    • High Chromium
  • Hastelloy
  • Inconel
  • Pure Nickel
  • Titanium
  • other special alloys on request
Connections
  • Flanged Ends
  • Butt Welding Ends
  • Socket Welding Ends
  • Threaded Ends
  • other requirements on request
Operation
  • Handwheel
  • Lever
  • Chainwheel
  • Gear Operator
  • Pneumatic Piston Actuator
  • Pneumatic Diaphragm Actuator
  • Electric Actuator
Applications
For highly toxic, aggressive, inflammable, volatile, polymerising and crystallising media under consideration of the material resistance
Approval
  • Fire safe
  • VdTÜV Prototype
  • TPED 2010/35/EU
  • ISO 15848-1 AH
Brand
Phönix Armaturen Werke
Catalogue Sheet
