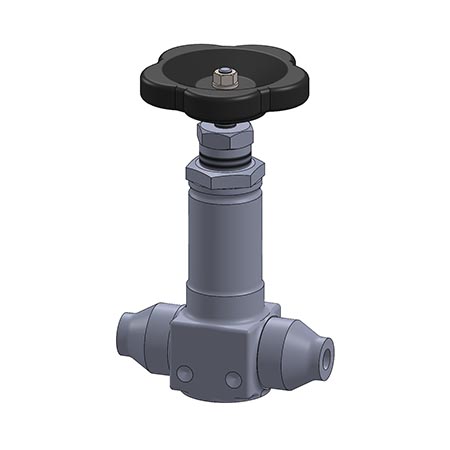

Type 525
Globe Valves
Phönix Armaturen Werke
Description
Globe valve with stuffing box seal, coupled divided stem, renewable disc and seat
PN
16
- 630
DN
8
Class
NPS
1/4
Temperature Rating
-196°C to 650°C
Body Forms
- Straight Pattern Body
- Angle Pattern Body
Basic Body Material
- Carbon Steel
- High and Low Temperature
- Stainless Steel
- High Temperature
- High Chromium
- Hastelloy
- other special alloys on request
Connections
- Flanged Ends
- Butt Welding Ends
- Socket Welding Ends
- Threaded Ends
- other requirements on request
Operation
- Handwheel
- T-Handle
- Pneumatic Piston Actuator
- Pneumatic Diaphragm Actuator
- Electric Actuator
Applications
For liquids, gases and vapours under consideration of the material resistance, also be used as first interception valve
Approval
- VdTÜV Prototype
- WB 35
Brand
Phönix Armaturen Werke
Catalogue Sheet
execution according to DIN
