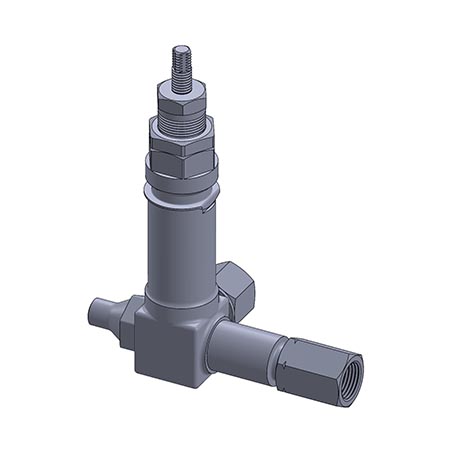

Type 597
Pressure gauve valves
Phönix Armaturen Werke
Description
Pressure gauge valve with test connection, bellows and emergency gland, coupled divided stem, renewable disc and seat
PN
250
DN
3.5
Class
NPS
1/8
Temperature Rating
-196°C to 450°C
Body Forms
- Straight Pattern Body
Basic Body Material
- Carbon Steel
- Low Temperature
- Stainless Steel
- High Chromium
- Hastelloy
- other special alloys on request
Connections
- Inlet: Male Plug G1/2 acc. to DIN EN 837-1
- Outlet: Male Plug G1/2-LH with nut G1/2 (DIN 16283)
- Test connection: threaded pin M20x1.5
Operation
- Handwheel
- T-Handle
Applications
For highly toxic, aggressive, inflammable, volatile and expensive media under consideration of the material resistance
Approval
Brand
Phönix Armaturen Werke
Catalogue Sheet
execution according to DIN
