Type 631

Valve combination

Type 631

Phönix Armaturen Werke

Description

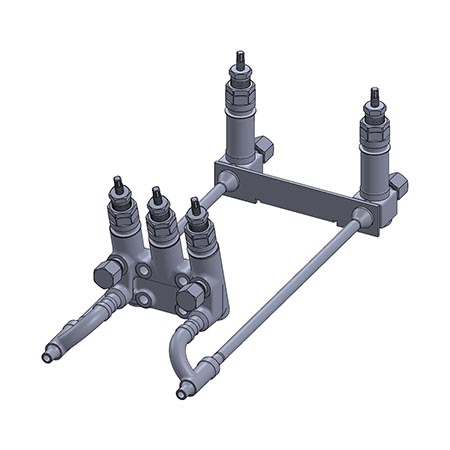

manifold with 5 valves and test connection, bellows and emergency gland, coupled divided stem, renewable disc and seat
PN
250
DN
8
Class
NPS
1/4
Temperature Rating
-196°C to 650°C
Body Forms
  • Straight Pattern Body
Basic Body Material
  • Carbon Steel
    • High and Low Temperature
  • Stainless Steel
    • High Temperature
    • High Chromium
  • other special alloys on request
Connections
  • Inlet: Butt and Socket Welding Ends or Threaded Ends
  • Outlet: Directly Flanged to Transducer (DIN 19213)
  • Test connection: threaded pin M20x1.5
Operation
  • T-Handle
Applications
For highly toxic, aggressive, inflammable, volatile and expensive media under consideration of the material resistance
Approval
Brand
Phönix Armaturen Werke
Catalogue Sheet
execution according to DIN
