Type 359
Controll Valves
Phönix Armaturen Werke
Description

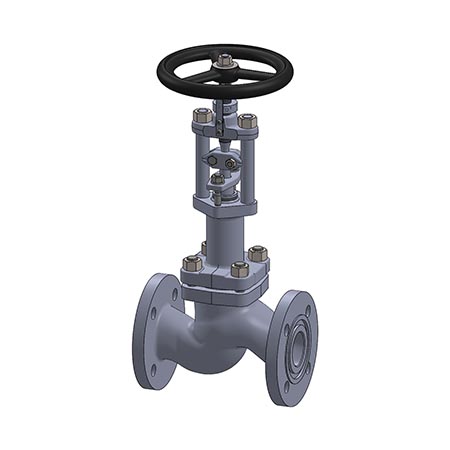

Control valve with encapsulated superlong bellows and emergency gland
PN
40
DN
15
- 250
Class
150
- 300
NPS
1/2
- 10
Temperature Rating
-196°C to 650°C
Body Forms
- Straight Pattern Body
- Angle Pattern Body
Basic Body Material
- Carbon Steel
- High and Low Temperature
- Stainless Steel
- High Temperature
- High Chromium
- Hastelloy
- Inconel
- Pure Nickel
- Titanium
- other special alloys on request
Connections
- Flanged Ends
- Butt Welding Ends
- Socket Welding Ends
- Threaded Ends
- other requirements on request
Operation
- Handwheel
- Chainwheel
- Gear Operator
- Pneumatic Piston Actuator
- Pneumatic Diaphragm Actuator
- Electric Actuator
Applications
For highly toxic, aggressive, inflammable, volatile and expensive media under consideration of the material resistance
Approval
Brand
Phönix Armaturen Werke
Catalogue Sheet
