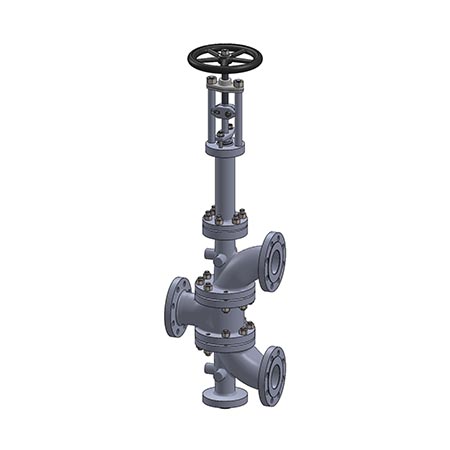

Type 370B

Change-over Valves

Type 370B

Phönix Armaturen Werke

Description
Change-over-Valve with flushed superlong bellows and emergency gland, low pressure loss, ζ < 1
PN
25 - 100
DN
15 - 500
Class
150 - 600
NPS
1/2 - 20
Temperature Rating
-196°C to 650°C
Body Forms
  • 3-way
Basic Body Material
  • Carbon Steel
    • High and Low Temperature
  • Stainless Steel
    • High Temperature
    • High Chromium
  • Hastelloy
  • Inconel
  • Pure Nickel
  • Titanium
  • other special alloys on request
Connections
  • Flanged Ends
  • Butt Welding Ends
  • Socket Welding Ends
  • Threaded Ends
  • other requirements on request
Operation
  • Handwheel
  • Chainwheel
  • Gear Operator
  • Pneumatic Piston Actuator
  • Pneumatic Diaphragm Actuator
  • Electric Actuator
Applications
Switch-over valve or in combination with safety valves for toxic, aggressive and inflammable gases and liquids, boiler and cooling water, saturated steam etc., under consideration of the material resistance
Approval
  • Patented design for US, Europe
  • China and Russia
Brand
Phönix Armaturen Werke
Catalogue Sheet
execution according to DIN
