Type 570

Globe Valves

Type 570

Phönix Armaturen Werke

Description

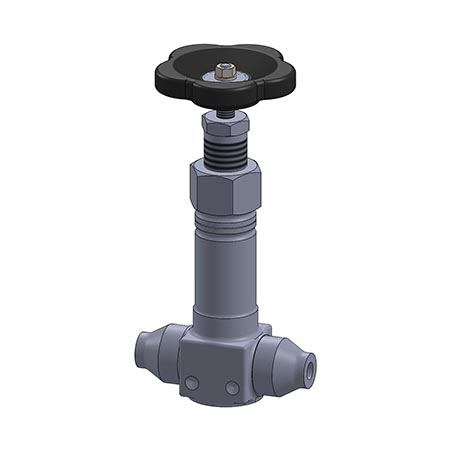

Globe valve with encapsulated bellows and emergency gland, coupled divided stem, renewable disc and seat
PN
16 - 250
DN
8
Class
NPS
1/4
Temperature Rating
-196°C to 650°C
Body Forms
  • Straight Pattern Body
  • Angle Pattern Body
Basic Body Material
  • Carbon Steel
    • High and Low Temperature
  • Stainless Steel
    • High Temperature
    • High Chromium
  • other special alloys on request
Connections
  • Flanged Ends
  • Butt Welding Ends
  • Socket Welding Ends
  • Threaded Ends
  • other requirements on request
Operation
  • Handwheel
  • T-Handle
  • Pneumatic Piston Actuator
  • Pneumatic Diaphragm Actuator
  • Electric Actuator
Applications
For highly toxic, aggressive, inflammable, volatile and expensive media under consideration of the material resistance, also be used as first interception valve
Approval
  • VdTÜV Prototype
  • WB 35
  • DGM 297 21 782.8
Brand
Phönix Armaturen Werke
Catalogue Sheet
execution according to DIN
